The Clark Project

A comprehensive kitchen renovation package developed in collaboration with BC Built to support design communication, client approvals and project delivery.

Project Snapshot

Builder: BC Built

Location: Mount Martha

Project Type: Kitchen & Laundry Renovation

Services: Design Development, Documentation & Visualisation

Status: Completed


This project involved the design development, documentation and visualisation of a contemporary kitchen and laundry renovation.

Studio Alyza was engaged to prepare a comprehensive package that supported client decision-making, joinery quoting and construction delivery through clear communication and professional documentation.

Project overview

Interior design mood board featuring wooden kitchen cabinets, a marble backsplash, a wooden island, and beige marble flooring.

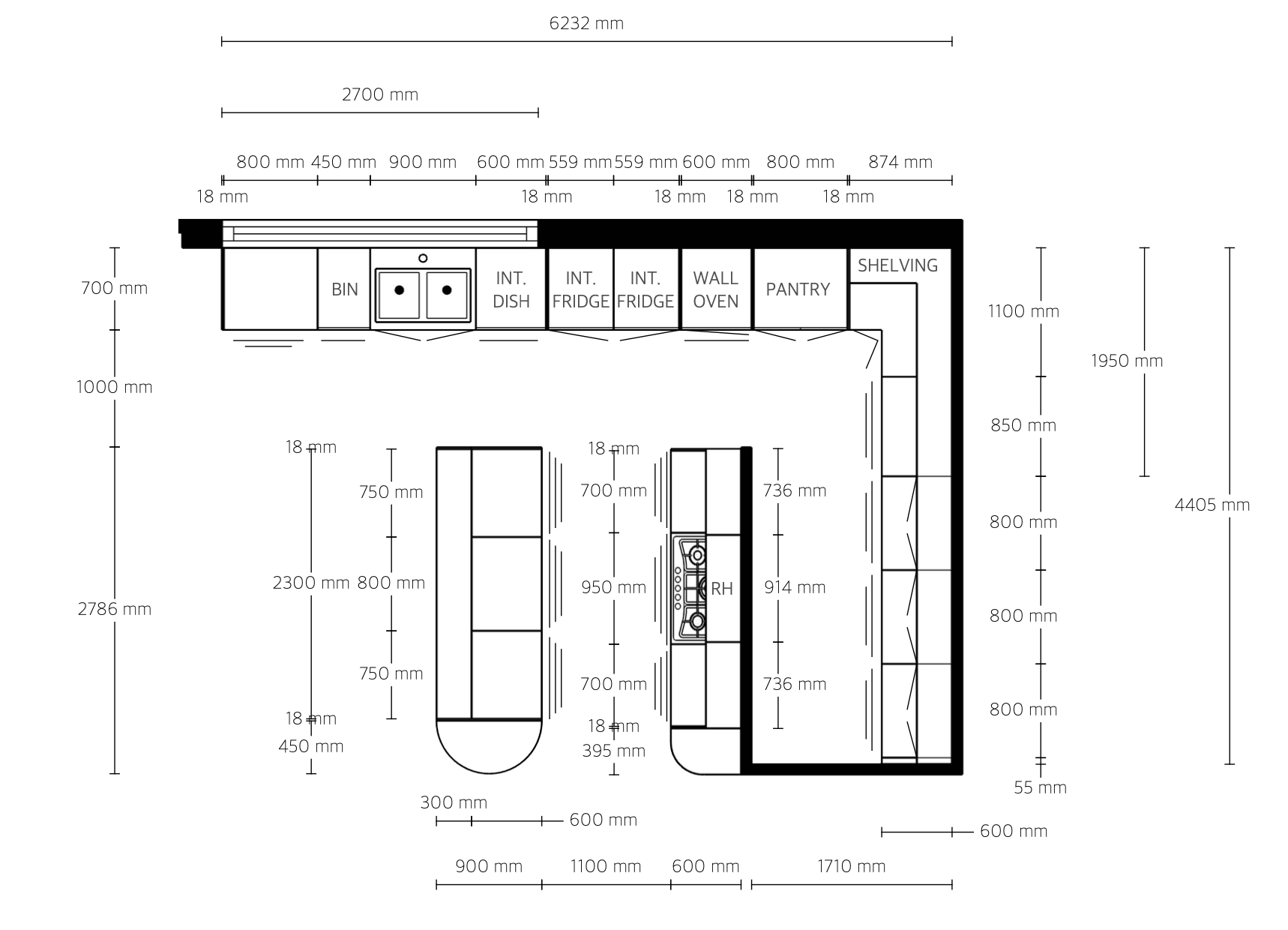

Architectural floor plan of a kitchen with detailed measurements, includes sink, refrigerator, oven, pantry, shelving, and space for appliances.

kitchen

laundry

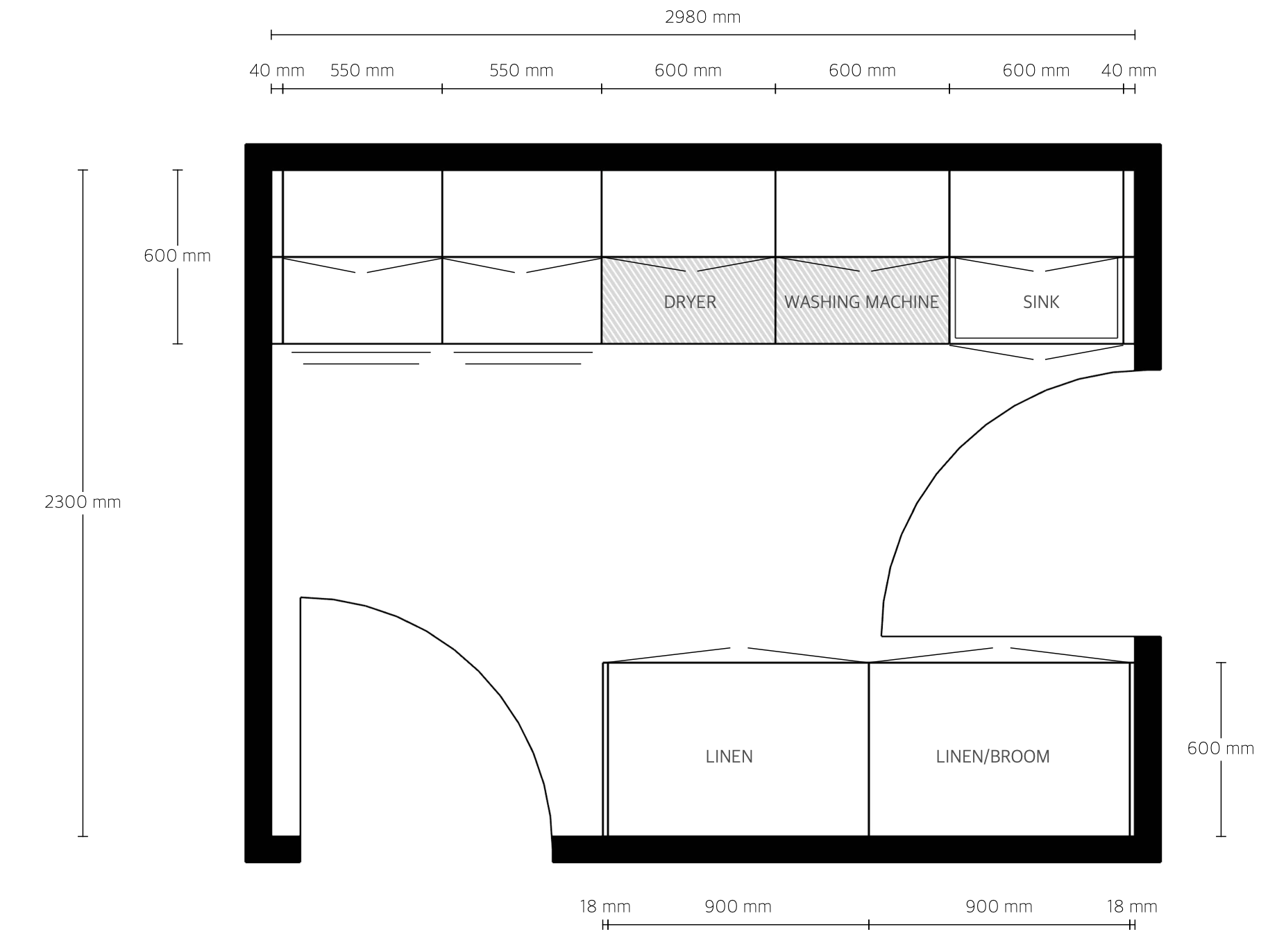

A detailed architectural floor plan in black and white, showing measurements in millimeters, with labeled sections including laundry area, linen closet, and a room with a sink, dryer, and washing machine.

Scope Of Works

✓ Design Development

✓ Joinery Documentation

✓ Builder Collaboration

Services Provided

✓ Floor Plans

✓ Internal Elevations

✓ Joinery Documentation

✓ Presentation Package

Deliverables

Detailed documentation was prepared to support accurate pricing, manufacturing and construction.

The package included dimensioned plans, elevations and joinery information designed to streamline communication between all trades.

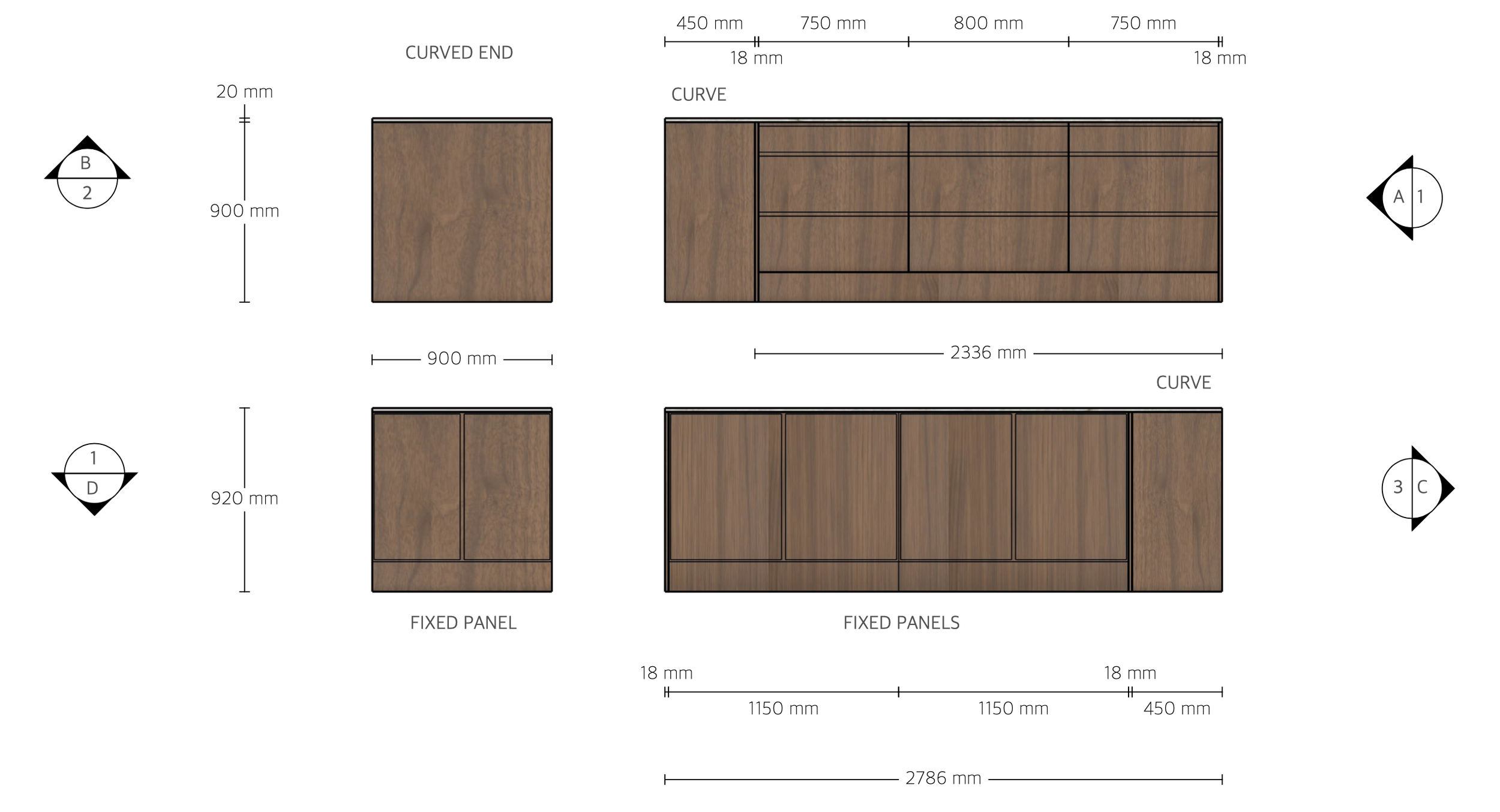

A detailed technical drawing of wooden furniture panels, showing their dimensions, layout, and construction guides from different angles.

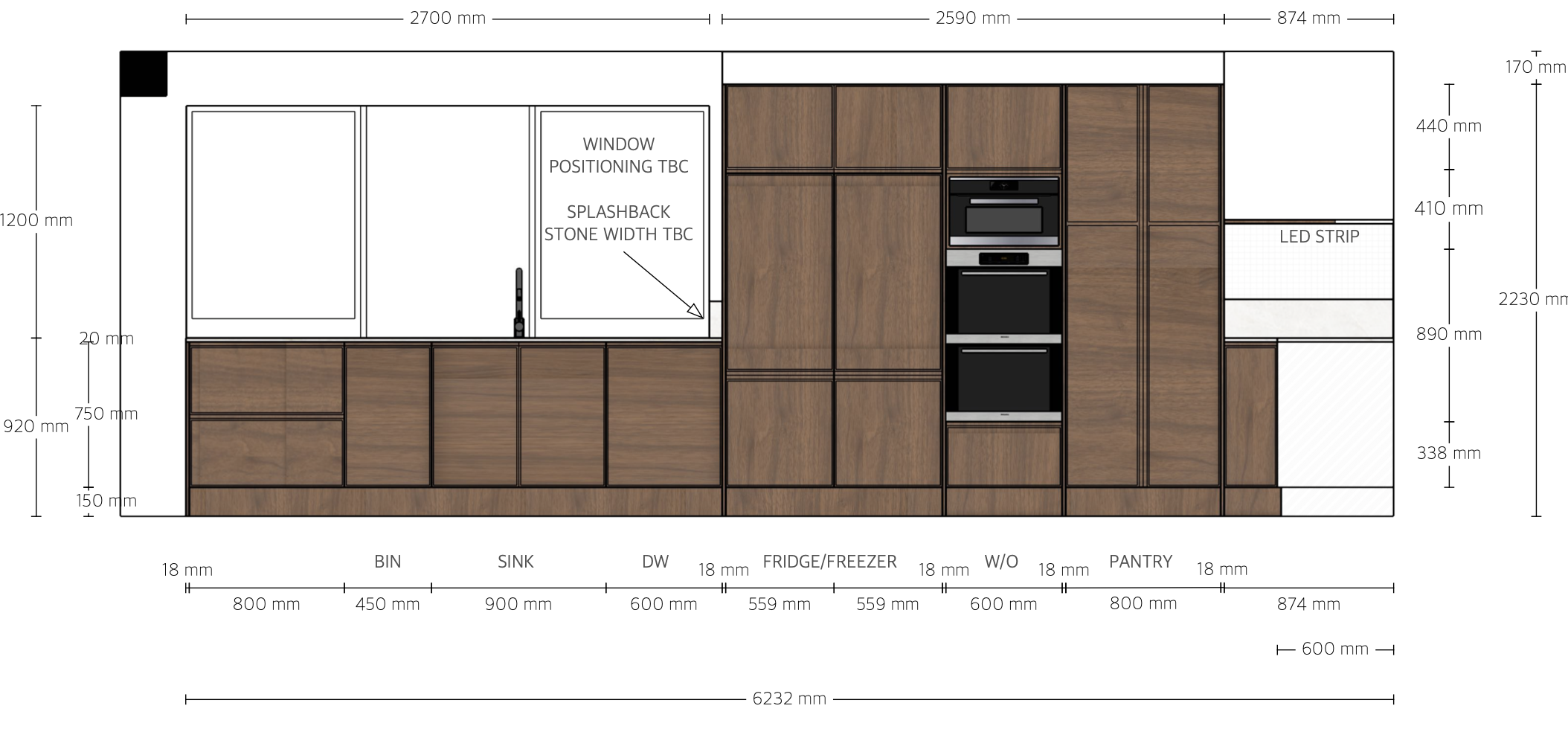

Kitchen cabinet layout with measurements, including cabinets for bin, sink, dishwasher, fridge/freezer, pantry, along with labeled sections for window positioning, splashback stone, LED strip, and various cabinet heights and widths.

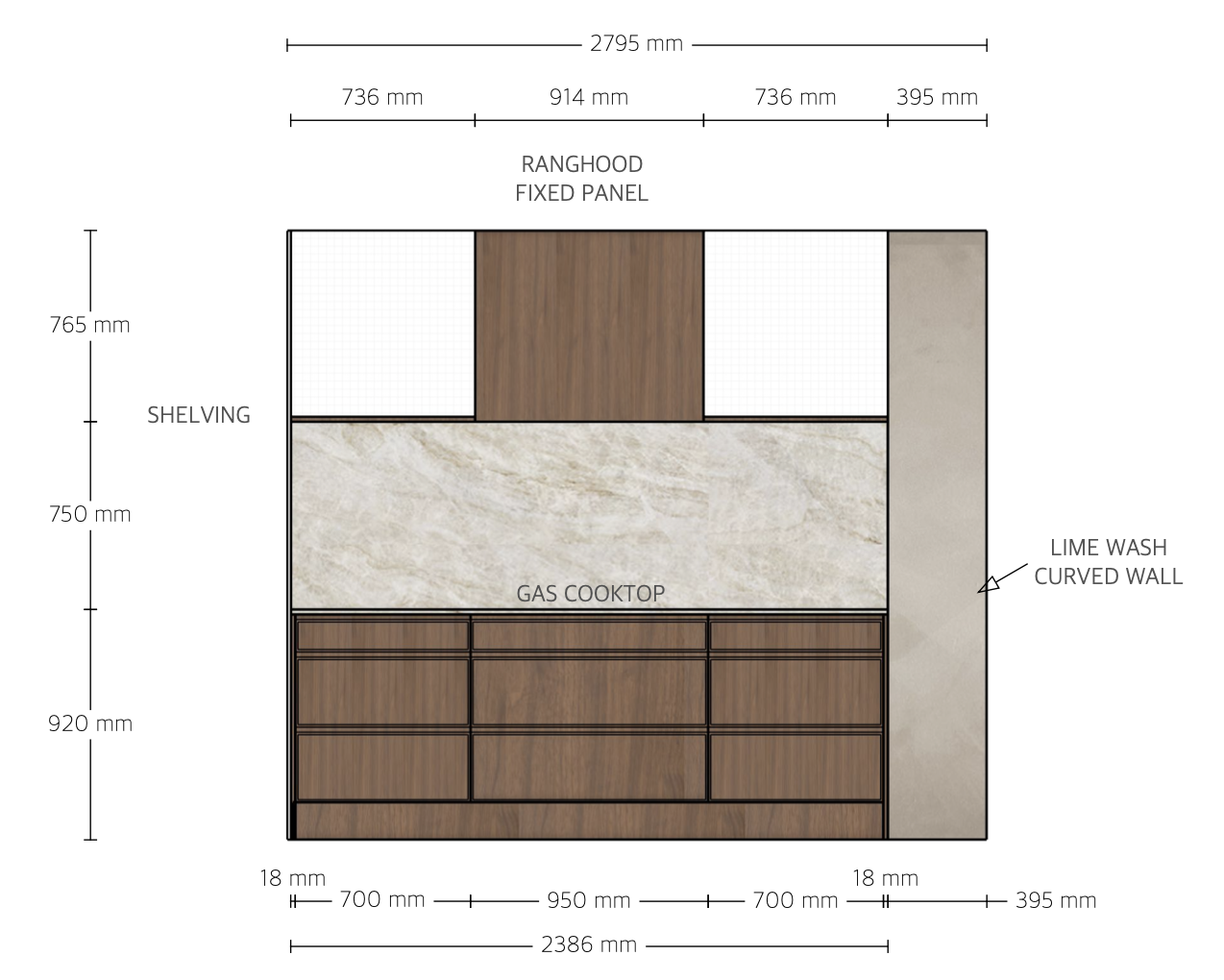

Floor plan of a kitchen design with measurements, showing a shelving unit, a gas cooktop, a curved wall labeled Lime Wash, and a fixed panel with a Ranghood.

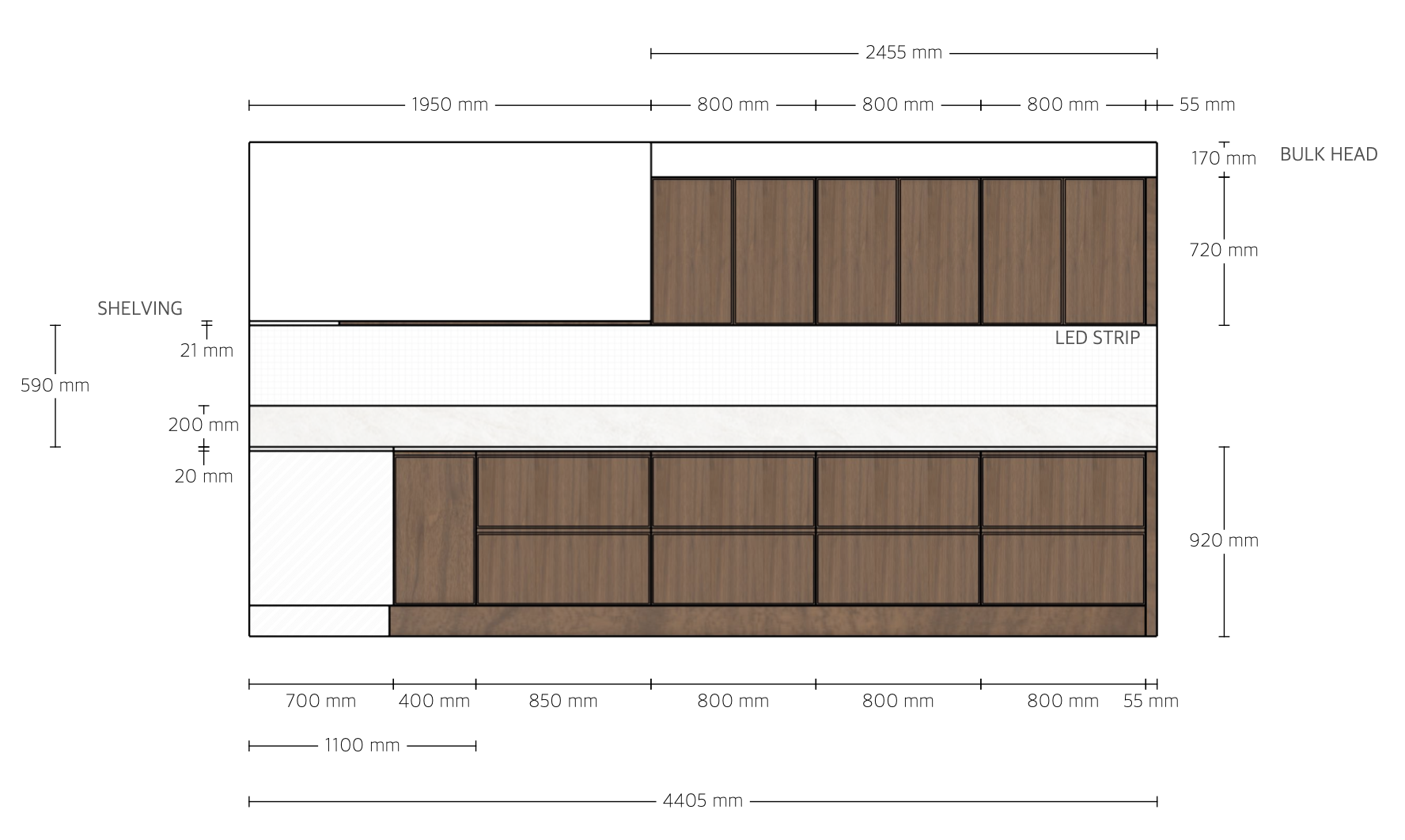

Technical drawing or blueprint of a cabinet design with detailed measurements in millimeters, including labels for bulk head, shelving, LED strip, and various cabinet sections.

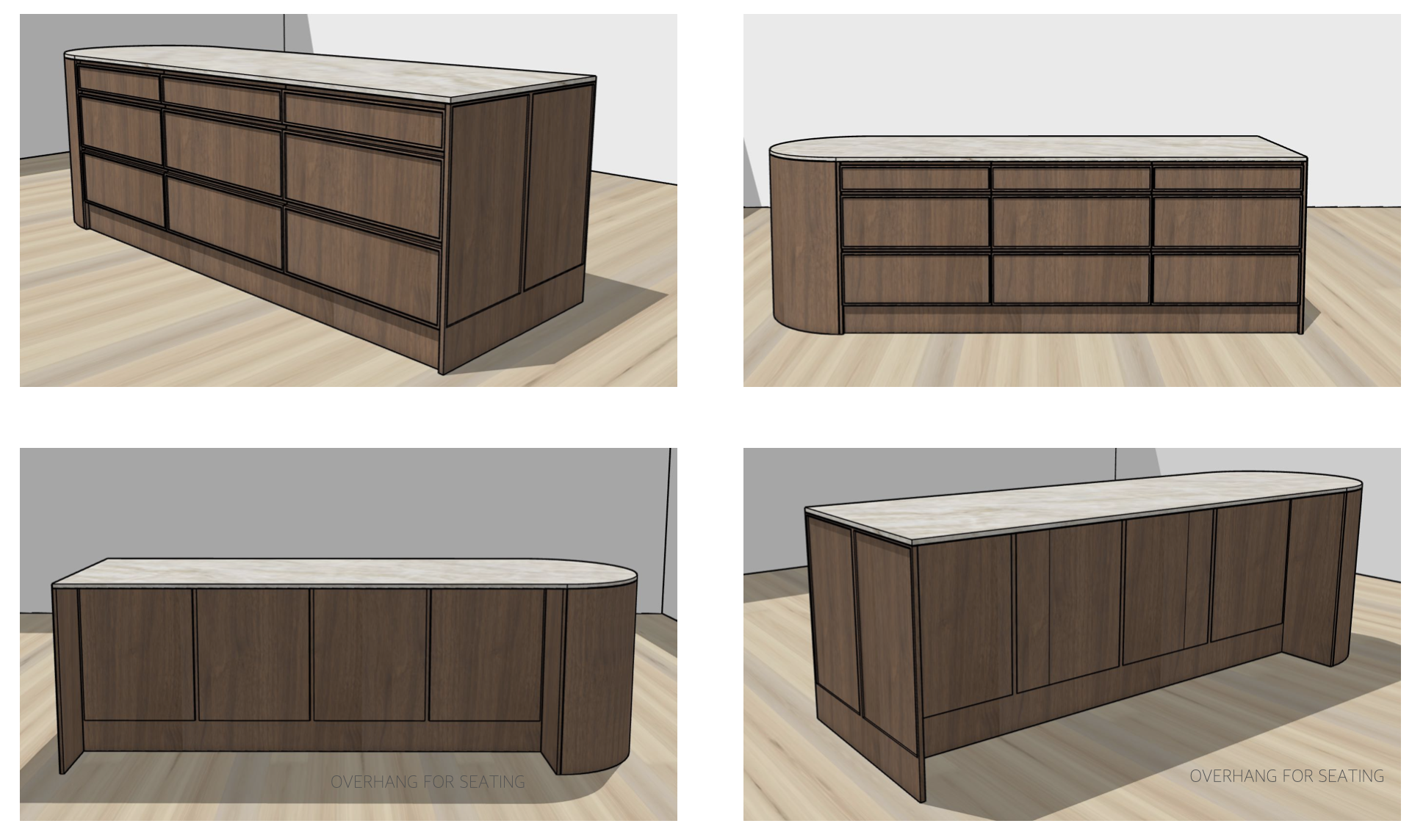

Elevation drawing of an island with marble tops, shown in a room with hardwood flooring.

The completed package provided a clear design direction and comprehensive documentation that supported quoting, approvals and construction delivery.

outcome
